Diode Laser xTool Beginner Friendly

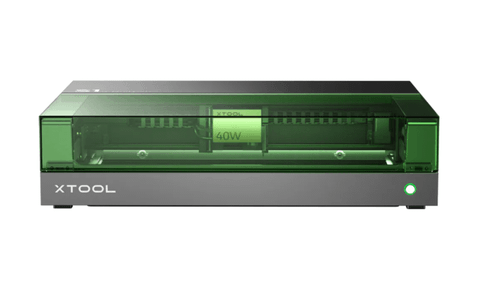

xTool S1 40W
$2,499
approximate street price
The xTool S1 40W is the high-power variant of xTool's flagship enclosed diode laser. Using eight 5.5W laser diodes fused into a 0.08×0.10mm spot, it cuts 18mm cherry wood and 15mm dark acrylic in a single pass — and can even score 0.1mm stainless steel, something few diodes manage. It shares the S1 20W's full enclosure, autofocus, built-in camera, and sliding front door, making it Class 1 safe out of the box.
Full Specifications
| Laser | |
| Type | Diode Laser |
| Wavelength | 455 nm |
| Optical Power | 40 W |
| Performance | |
| Work Area | 498 × 319 mm |
| Max Speed | 36,000 mm/min |
| Focus | Autofocus |
| Features | |
| Enclosure | Yes |
| Air Assist | Yes |
| Rotary Compatible | Yes |
| WiFi | Yes |
| Camera | Yes |
| Physical | |
| Approx. Price | $2,499 |
| Release Year | 2024 |
| Weight | 20 kg |
Pros & Cons
What we like
- Cuts 18mm wood and 15mm acrylic in one pass
- Can mark and score thin stainless steel
- Full Class 1 enclosure — no safety glasses required
- Built-in camera for precise placement
- Autofocus and air assist included
- Same fast 36,000 mm/min (600 mm/s) speed as 20W
Watch out for
- Significantly pricier than the 20W variant
- Heavier than open-frame equivalents
- Enclosure limits maximum material height
- Diode still falls short of CO₂ for thick acrylic or glass
Compatible Materials
WoodAcrylicLeatherCardboardFabricPaperRubberStoneMetal EngravingAnodized Aluminumstainless steel
Best For
